          Jumpers and whips

          Twin core PV1-F Solar Extension Cable with Female and Male Connectors for solar system

          SUNKEAN's harness assemblies are available in customized configurations to meet specific application requirements, reducing installation costs.

          • Lead Time:

            1-2 weeks
          • Product Orgin:

            CHINA
          • Shipping Port:

            SHANGHAI , CHINA
          • Payment:

            T/T , L/C
          • Applicable Cable O.D.:

            4mm2 、6mm2 or 10mm2
          • IP Level:

            IP68
          • Product Detail

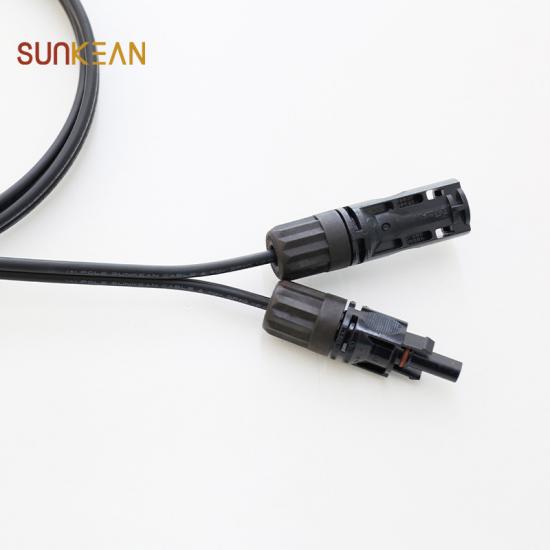

          Twin core PV1-F Solar Extension Cable with Female and Male Connectors for solar system

          This twin core solar extension cable use TüV 2PfG PV1-F solar cable, twin core cable is more convenient to manage.


          Product Characteristics:

          Voltage Rating DC:1000V
          Test Voltage 6500V AC
          Temperature Rating

          Rated: -40°C to +90°C

          Testing Standard

          Flame Test : IEC60332-1-2, EN60332-1-2

          Halogen Free: EN50627-2-1, EN60684-2


          Cross Section

           (mm2)

          Construction

          (No.mm)

          Insulation O.D.

          (mm)

          Cable O.D.

          (mm)

          Conductor Resistance

          Max(?/km, 20°C)

          2*4.0 56/0.285 3.55 4.60*9.40 5.09
          2*6.0 84/0.285 4.15 5.20*10.60 3.39
          2*10.0 77/0.40 5.15 6.30*12.80 1.95


          Product Processing:



          Product Features:

          ------Connector is set up at  SINGLE end of cable;

          ------Twin core cable allows for less cable management concerns;

          ------Improve construction efficiency;

          ------Reduce labor costs;

          ------Appointed  length is acceptable


          Packing & Delivery:


          Application Scenario:


          Global Exhibitions:


          Company Profile:

          SUNKEAN is a fast-growing solar company ,as well as a turnkey solution provider in China. Products cover PV modules,PV1-F solar cable, solar connectors for PV system , PV connectors, pvc coated wire mesh fence, inverters etc solar products .

          SUNKEAN is committed to providing the best solutions for users, installers, investors and all stakeholders. We always take the responsibility on customer’s demands. We make our effort for innovations and breakthroughs.


          FAQ:

          Q: How could i get the sample ?

          A: We have different kinds of XLPE insulation pv solar cable, photovoltaic cable, xlpo solar cable in stock, you can require for samples to check our quality.Samples are free provided, you only need to pay the courier fees.

          Q: How long is the delivery time?

          A1)For Sample: 1-3 Days;

          A2)For small Orders: 3-10 Days;

          A3)For mass Orders:15-20 Days;

          Q: What is your terms of payment ?

          A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment or against B/L.


          If you are an end users , we can offer more detail information to you.Please, if you have any questions or concerns about shipping time and delivery, you can ask our professional products consultant.
